Waqt
- High Precision Timekeeping:
- Integration with high accuracy RTC.
- GPS synchronization to maintain nanosecond-level precision (optional).
- Multi-Protocol Compatibility:
- Support for Network Time Protocol (NTP) and Precision Time Protocol (PTP). Acts as the primary source of time for the entire system.
- Scalability:
- Modular design allows for expansion with additional clocks and synchronization modules.
- Time Zone
- Supports multiple time zones for global synchronization at the same time.
- Security:
- Robust authentication and encryption to protect time synchronization data.
- Output Interface:
- Ethernet wired or wireless (Wi-Fi) or Rs485.
- Alarm and Event Management:
- Event logging and reporting to track system performance.
- Real-time alarm notifications.
- Temperature and Environmental Monitoring:
- Integration with environmental sensors (Temp and Humidity) for monitoring conditions affecting system performance.
- Customization:
- Options for hardware and software customization to meet specific requirements.
- User Documentation and Support:
- User manuals.
- Access to technical support for assistance.

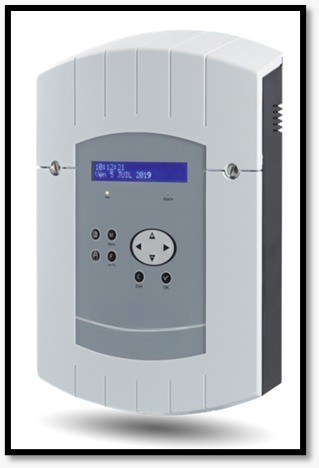

The KMC101 is a wall-mounted Master Clock designed for localized installations.
It features an LCD 2×16 character display and automatically sets the time on all connected clocks. The system ensures identical time across all clocks within the same location. Automatic summer and winter time changeover is supported, along with time protocol selection.
Physical dimensions are 15 × 28 cm, and the unit operates on a 12 V, 1 A power supply.
The KMC102 is a rack-mounted Master Clock suitable for centralized installations such as server rooms and control panels.
It includes an LCD 2×16 character display and provides automatic time synchronization to all connected clocks. The system maintains identical time across all locations and supports automatic summer and winter time changeover. Time protocol selection is available.
The unit operates on a 12 V, 1 A power supply.
The KMC103 is a kiosk-based Master Clock with a touch screen interface. Display size options include 15”, 17”, and 21”.
The system supports Windows, Linux, and Android-based interfaces. It automatically sets time on all connected clocks and ensures identical time throughout the location. Automatic summer and winter time changeover and time protocol selection are supported.
An integrated event logger allows monitoring and record-keeping of system events.
Synchronization
o Relies on the Master Clock as its primary time reference.
o Receives time signals and synchronizes its internal clock to match the Master Clock.Protocol Compatibility
o Supports the same time synchronization protocols as the Master Clock, including NTP and PTP.Management and Monitoring
o Can be configured, managed, and monitored through the Master Clock interface.Clock Distribution
o Distributes synchronized time to all devices connected to the Slave Clock.Alarm and Event Monitoring
o Reports system events and alarms to the Master Clock for centralized monitoring.Temperature and Environmental Monitoring
o May include built-in environmental sensors or rely on sensor data from the Master Clock.Customization
o Limited customization options, mainly focused on synchronization parameters.User Documentation and Support
o User manuals and technical support are typically provided by the Master Clock manufacturer.

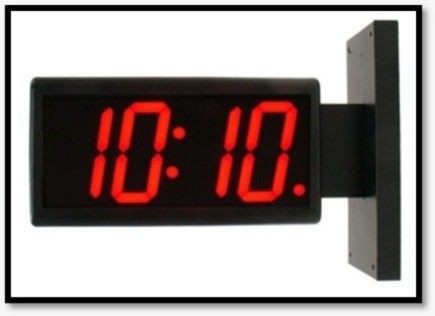

Standard Specifications
The clock features a single-sided display with flicker-free operation. It displays hours and minutes, offers high brightness, and provides a wide viewing angle. Maximum power consumption is 10 W.
The physical dimensions are 29 × 10 × 5 cm, and the standard power supply is 12 V, 1 A.
Configurable Options
The KSC201 series is available in single-sided or double-sided configurations.
Display formats include:
• 4 digits (HH:MM)
• 6 digits (HH:MM:SS)
Segment sizes available are:
• 2.3”
• 3”
• 4”
• 5”
Segment colors available are:
• Red
• Green
• Blue
• White
Power source options include:
• 12 V DC
• PoE (12 V DC)
• 110 / 220 V AC
Connectivity options include:
• Ethernet
• Wi-Fi
• RS485
Optional features include temperature measurement, humidity measurement, and recorded messages with internal amplifiers, making the clock suitable for school bell systems and pre-recorded alarm applications.

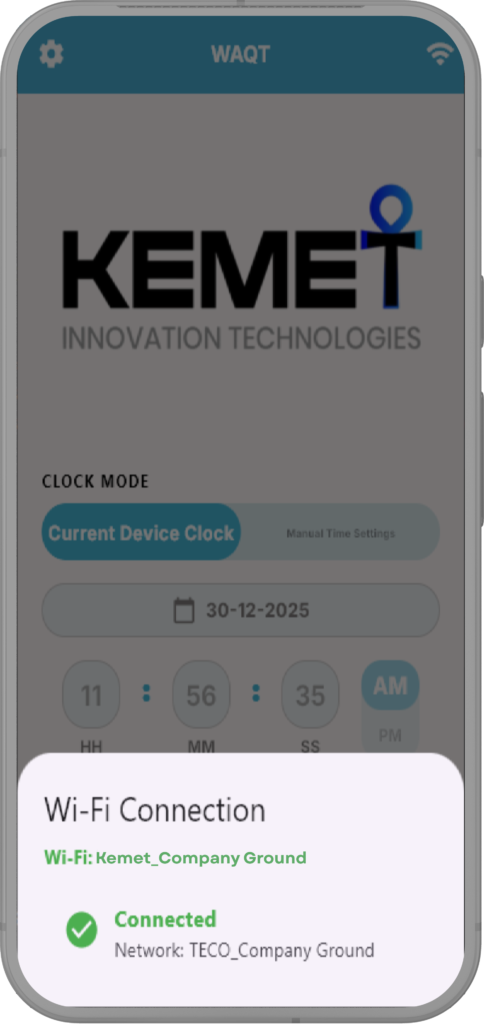

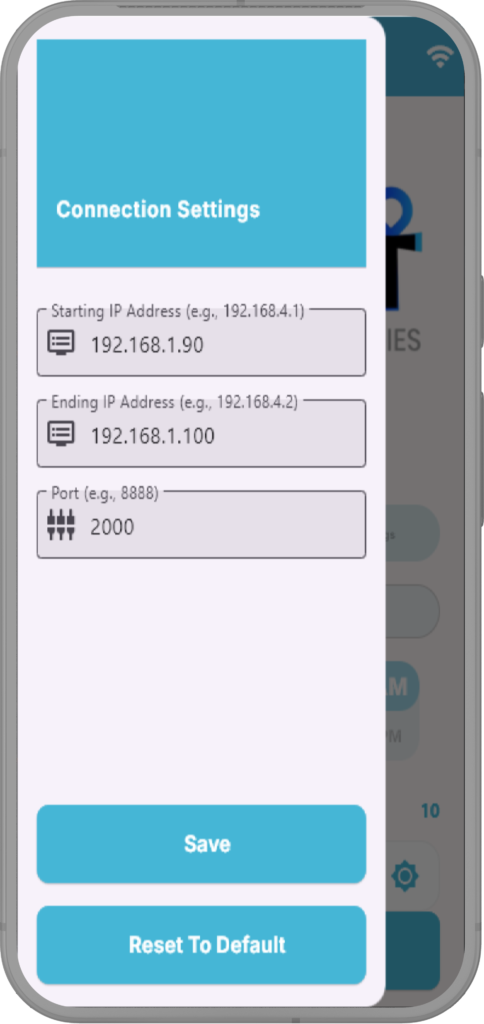

The KSA301 mobile application allows users to control a single clock.
It supports both automatic and manual time control. In automatic mode, the system synchronizes time using the device’s current time. In manual mode, users can adjust time settings as required.
The application allows brightness adjustment, displays Wi-Fi connection status, and clearly indicates whether the system is connected or disconnected. All settings are stored locally, enabling reuse and updates at any time.
The application is supported on mobile devices.

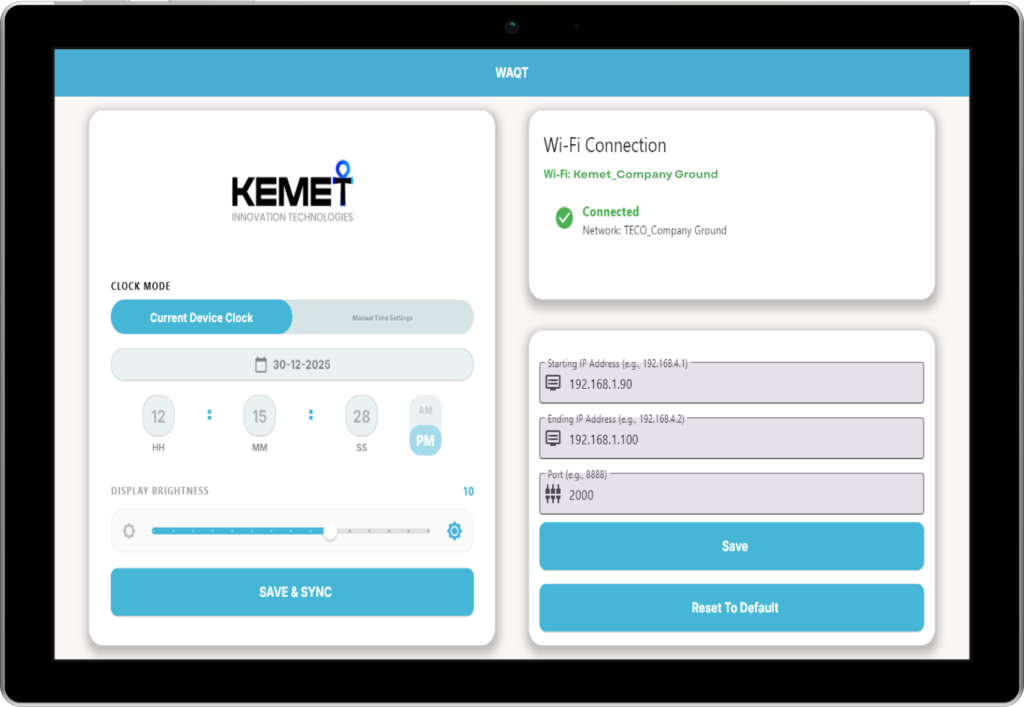

The KSA302 desktop application provides similar functionality for PC environments.
It supports automatic and manual time control, allows settings to be sent to one clock, and includes brightness adjustment. Wi-Fi status is displayed clearly, and all configurations are stored locally for reuse and updates.
The application is supported on PC devices.

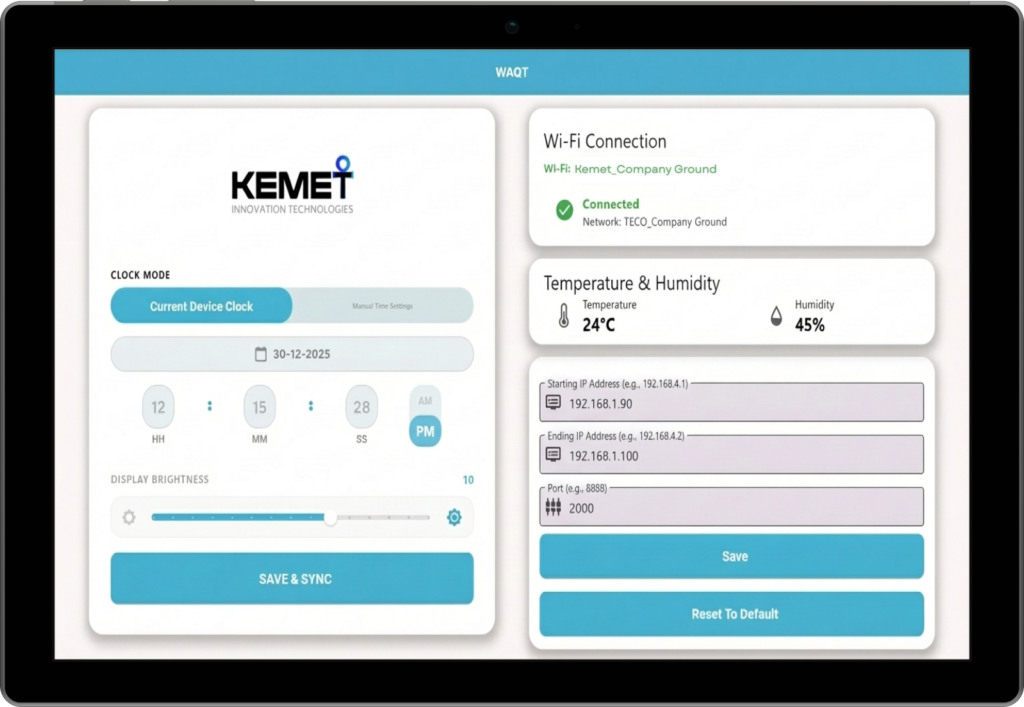

KSA303 extends desktop functionality with centralized clock management.
Users can control multiple clocks from a single application and send settings to one or many clocks simultaneously. Automatic and manual time control, brightness adjustment, and Wi-Fi status monitoring are supported.
The application displays real-time temperature and humidity readings, showing environmental conditions inside the building. All settings are stored locally for reuse and updates.
The application is supported on desktop devices.

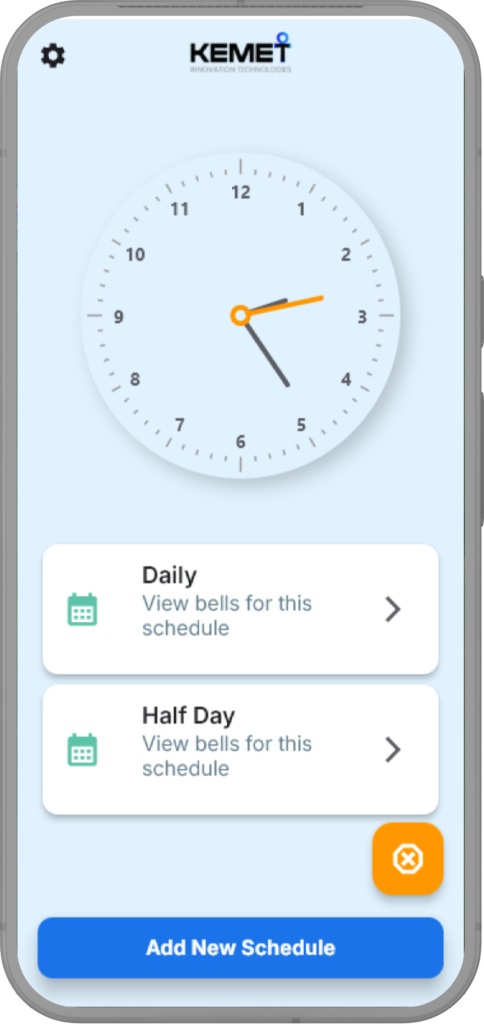

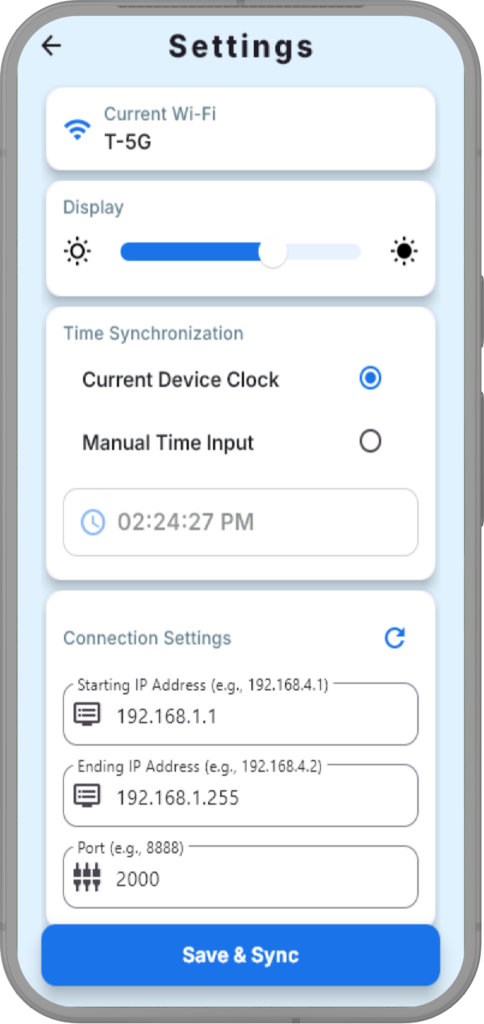

KSA304 is a mobile-based Master School Bell system with pre-recorded alarms.

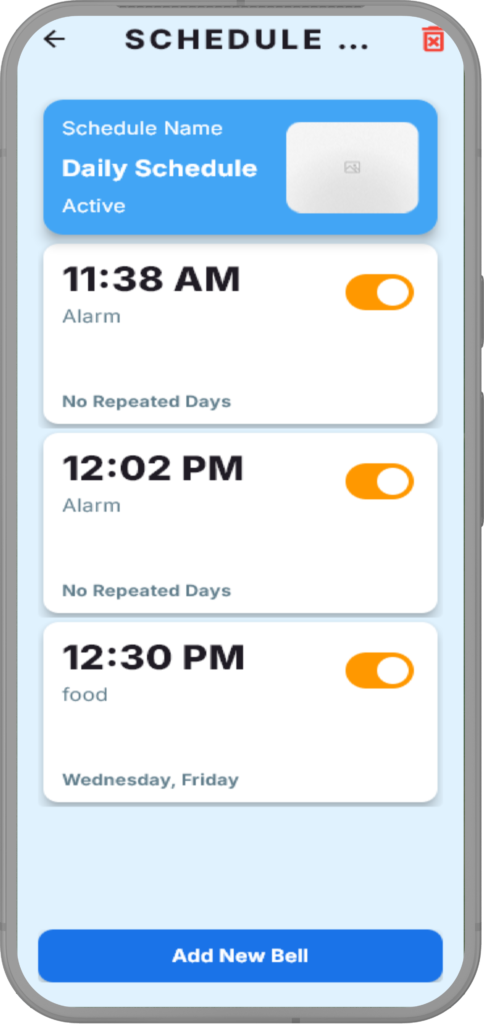

Schools can create secure accounts using an email address, ensuring independent data management. Multiple bell schedules can be created, and each schedule can have its own set of bells.
Each bell can be customized with a specific time, predefined bell sound, repeat options, and selected days of the week. The system supports both one-time bells and repeated bells.
Schools can add, edit, disable, or delete bells as required. Bells operate reliably and will ring on time even if the application is closed.
The application is supported on mobile devices.

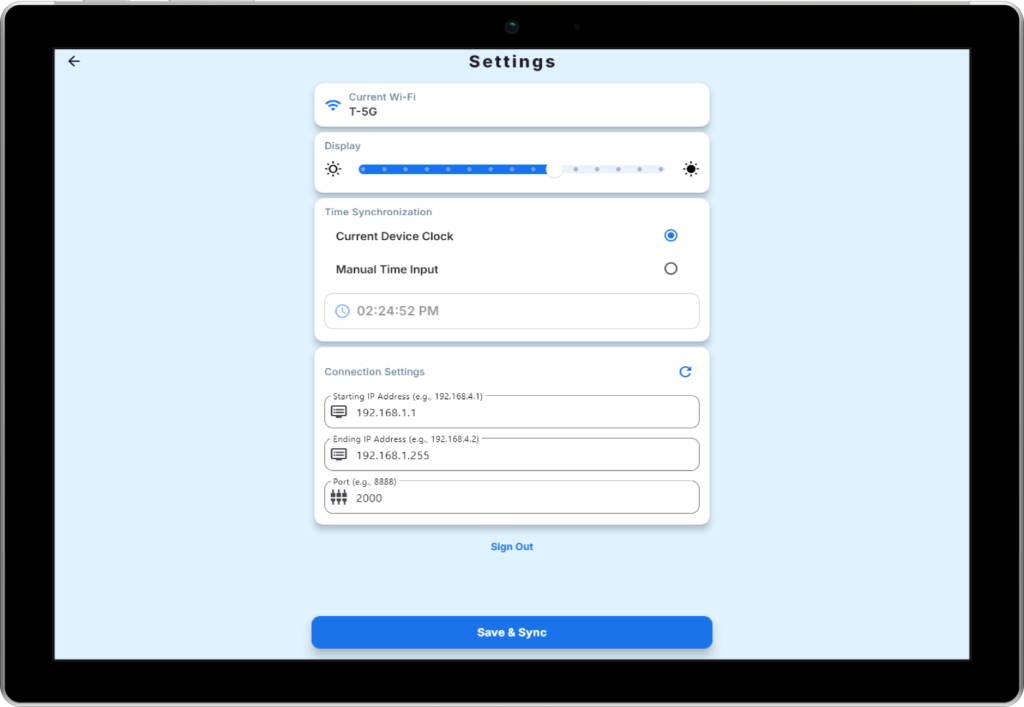

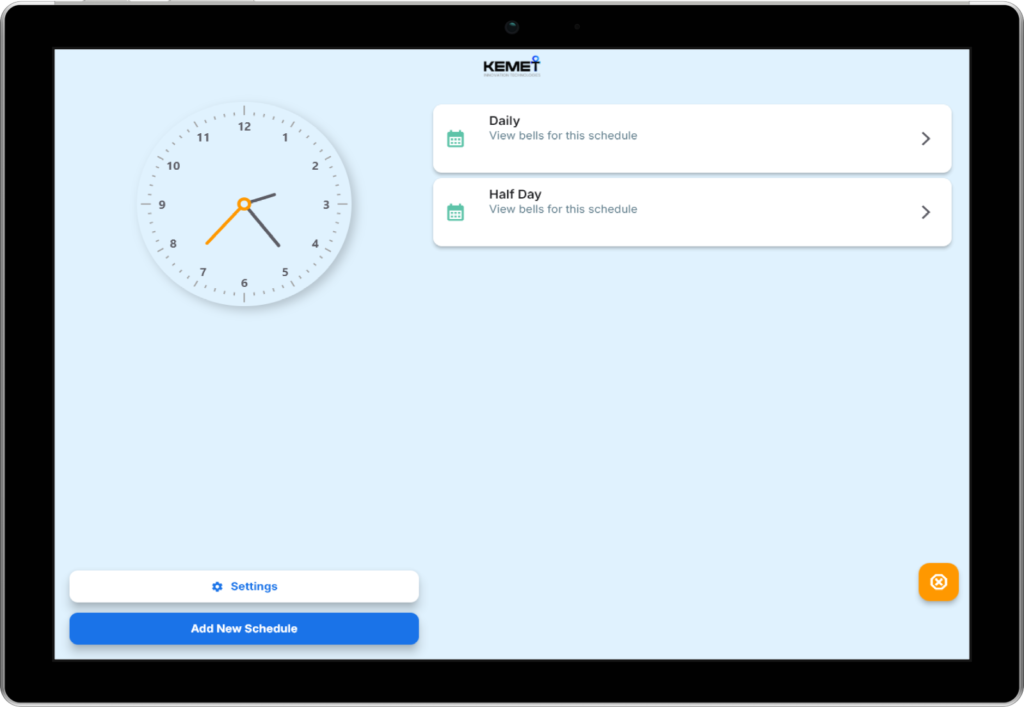

KSA305 is the desktop version of the Master School Bell system.
It offers secure login, independent school data management, and flexible bell scheduling. Multiple schedules and customized bells can be created with time, sound, repeat options, and day selection.
Schools have full control over bell management, including adding, editing, disabling, and deleting bells. The system ensures reliable operation even when running in the background.
The application is supported on desktop devices.
