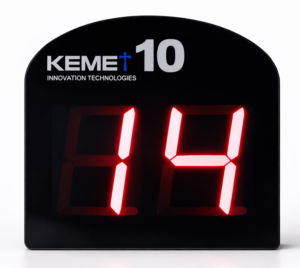

The KQS101 is a basic wired token display unit intended for simple queuing environments where a two-digit token display is sufficient.

This display features a two-digit, 7-segment LED panel with a segment size of 5 inches, ensuring clear visibility at service counters. The unit connects via RJ11 wiring, providing stable and direct communication between the counter and the display.

Queue advancement is controlled through a single-button operation, and a dedicated reset button allows the operator to restart the queue when required.

The display operates using a 12 V DC, 1 A power supply, making it suitable for continuous operation in clinics, offices, and small service desks.

The KQS102 is functionally similar to the KQS101, with the addition of an integrated audible alert.

It features a two-digit, 7-segment LED display with a 5-inch segment size and uses an RJ11 wired connection for reliable communication. When the next customer is called, the unit produces a ding dong sound, helping to alert customers who may not be directly watching the display.

The unit includes a reset button for queue control and operates on a 12 V DC, 1 A power supply. This model is suitable for service environments where audio indication improves customer awareness.

The KQS103 is a wireless two-digit token display designed for installations where wired control is not preferred.

It uses a two-digit, 7-segment LED display with 5-inch segments and is controlled through a WiFi-connected mobile application. This eliminates the need for physical keypads or wired control interfaces.

The unit is powered by 12 V DC, 1 A and is suitable for flexible installations in clinics, offices, and counters where mobility and ease of installation are required.

The KQS104 extends the functionality of the KQS103 by adding an integrated ding dong sound.

The display consists of a two-digit, 7-segment LED panel (5-inch segments) and is fully controlled via a WiFi mobile application. When a token is called, both visual and audio alerts are triggered.

The unit operates on 12 V DC, 1 A power supply and is ideal for wireless installations requiring enhanced customer notification.

The KQS105 is designed for environments with higher customer volumes requiring three-digit token numbers.

It features a three-digit, 7-segment LED display with 5-inch segments, providing clear visibility. The display connects via RJ11 wired communication and supports single-button operation for calling the next customer.

A reset button is provided for queue restart, and the unit operates using a 12 V DC, 1 A power supply.

The KQS106 adds an audible alert to the three-digit wired display.

It includes a three-digit, 7-segment LED display (5-inch segment size) with RJ11 wired control. When advancing the queue, a ding dong sound is generated to notify waiting customers.

The unit includes a reset function and operates on 12 V DC, 1 A, making it suitable for busy service counters.

The KQS107 is a wireless three-digit display controlled via a mobile application.

It uses a three-digit, 7-segment LED display with 5-inch segments, communicates over WiFi, and eliminates the need for wired control panels.

The unit operates on 12 V DC, 1 A and is suitable for flexible installations where wiring is limited.

The KQS108 combines wireless control with audio alerts.

It features a three-digit, 7-segment LED display (5-inch segments), WiFi-based mobile app control, and a built-in ding dong sound for customer notification.

Power requirement is 12 V DC, 1 A.

The KQS201–KQS209 series includes advanced, network-enabled token display units designed for medium to large-scale queuing systems. These displays support Ethernet, RS485, WiFi, and PoE connectivity and are suitable for both standalone and centralized server-based deployments. With high-brightness, flicker-free LED displays and optional built-in sound card support for voice announcements, this category is ideal for facilities requiring scalable, reliable, and centrally managed queue display solutions.

The KQS201 is a network-based token display intended for centralized queuing systems.

It uses Ethernet RJ45 connectivity, supports 1 to 3 digit token display, and features a flicker-free LED panel with high brightness and wide viewing angle.

The physical dimensions are 3 × 16 × 18.5 cm, maximum power consumption is 10 W, and the unit operates on 12 V DC, 1 A.

The KQS202 is designed for RS485 daisy-chain installations, allowing multiple displays to be connected in sequence.

It supports 1 to 3 digit display, features a flicker-free high-brightness LED, has dimensions of 3 × 16 × 18.5 cm, and consumes a maximum of 10 W.

Each unit requires 12 V DC, 1 A.

The KQS203 is a WiFi-enabled network display suitable for large areas.

It supports 1 to 3 digit display, features high brightness and wide viewing angle, and has a compact enclosure of 3 × 16 × 18.5 cm.

Power requirement is 12 V DC, 1 A, with a maximum power consumption of 10 W.

The KQS204 provides Ethernet connectivity with AC power input.

It supports 1 to 3 digit display, features flicker-free LED technology, wide viewing angle, and operates directly on 110/220 V AC.

Maximum power consumption is 10 W, dimensions are 3 × 16 × 18.5 cm.

The KQS205 is an RS485-based display with AC power input.

It supports 1 to 3 digit token display, uses high-brightness flicker-free LED, and operates on 110/220 V AC.

Maximum power consumption is 10 W, dimensions 3 × 16 × 18.5 cm.

The KQS206 combines WiFi connectivity with AC power operation.

It supports 1 to 3 digit display, features high brightness LED, and operates on 110/220 V AC.

Dimensions are 3 × 16 × 18.5 cm, maximum power consumption 10 W.

The KQS207 is powered using Power over Ethernet (PoE).

It supports 1 to 3 digit display, uses Ethernet RJ45 connectivity, and eliminates the need for a separate power supply.

The display features high brightness, flicker-free LED, dimensions 3 × 16 × 18.5 cm, maximum power 10 W.

The KQS208 is designed for automatic voice announcements.

It features Ethernet connectivity, a built-in sound card, and requires an external amplified speaker or amplifier with speaker.

The display supports 1 to 3 digit tokens, uses 12 V DC, 1 A power, consumes a maximum of 10 W, and measures 3 × 16 × 18.5 cm.

The KQS209 offers wireless voice announcement capability.

It includes WiFi connectivity, a built-in sound card, and requires an external amplified speaker.

It supports 1 to 3 digit display, operates on 12 V DC, 1 A, consumes 10 W maximum, and has dimensions of 3 × 16 × 18.5 cm.

The KQS301–KQS303 series comprises counter control keypads that allow service staff to manage customer flow directly from the service desk. Available in RJ11, RJ45, and WiFi variants, these keypads enable essential queue operations such as calling the next customer, VIP calling, client transfer, and window locking. This category is designed to provide reliable, easy-to-use control interfaces for both standalone and network-based queuing systems.

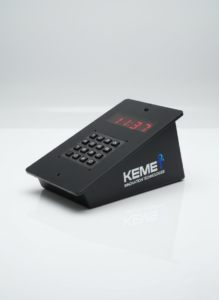

The KQS301 is a wired keypad designed for direct counter operation.

It allows:

• Calling the next customer
• VIP customer calling
• Client transfer
• Window lock

The keypad is powered directly from the counter connection.

The KQS302 is an Ethernet-based keypad.

It supports:

• Next customer calling
• VIP calling
• Client transfer
• Window lock

Power requirement is 12 V DC, 0.25 A.

The KQS303 is a wireless keypad for flexible installations.

It supports:

• Next customer calling
• VIP calling
• Client transfer
• Window lock

Power requirement is 12 V DC, 0.25 A.

The KQS304–KQS306 series includes mobile applications designed to manage queue operations through smartphones and tablets. These applications support Android and iOS platforms and offer varying levels of functionality, from basic standalone queue control to advanced server-integrated operations with service notes and data synchronization. This category is ideal for environments seeking flexible, mobile-based control without dedicated hardware keypads.

A mobile application for basic queue control.

• Android and iOS support
• Displays current and total customers
• Next customer and reset buttons
• Dark mode interface

Role-based mobile application.

• Master view shows total reservations and calling control
• Secretary view allows adding reservations
• Displays current customer
• Dark mode support
• Reset functionality

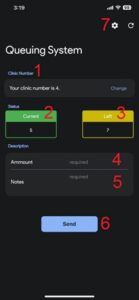

Server-integrated mobile application.

• Displays clinic selection
• Shows served and remaining customers
• Service amount and notes entry
• Sends data to Windows server
• Reset function

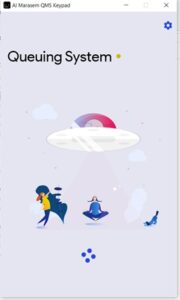

Desktop counter application.

• Displays clinic number
• Shows current and remaining customers
• Service amount and notes entry
• Data transfer to server
• Dark mode support

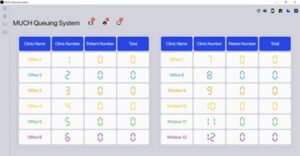

The core of large-scale installations.

• Windows-based server software
• Centralized customer database
• Token calling control
• Excel statistical reporting per clinic
• Ethernet and WiFi connectivity
• User-defined interface
• Built-in voice announcement
• Arabic and English language support

The KQS502–KQS503 series includes self-service ticket dispenser kiosks designed to issue queue tokens to customers upon arrival. Featuring touch screen interfaces and built-in thermal printers, these kiosks support numeric and alphanumeric token sequences and operate over Ethernet or WiFi networks. This category is well suited for high-traffic service areas where automated token issuance helps reduce counter congestion and improve customer flow efficiency.

Self-service kiosk software.

• Windows-based application
• Network-connected to server
• Customer data storage
• Token calling and reporting
• Billing data printing

• 15-inch touchscreen
• Built-in thermal printer
• Numeric and alphanumeric token printing
• Ethernet and WiFi connectivity
• Multi-language ticket printing

• 17-inch touchscreen
• Built-in thermal printer
• Numeric and alphanumeric token printing
• Ethernet and WiFi connectivity
• Multi-language ticket printing

• 21-inch touchscreen
• Built-in thermal printer
• Numeric and alphanumeric token printing
• Ethernet and WiFi connectivity
• Multi-language ticket printing

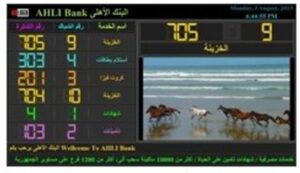

Visual communication software for waiting areas.

• Runs on PC, Mini PC, or Android smart screen
• Ethernet and WiFi connectivity
• Video and image playback
• Playlist creation
• Displays counters and queue information
• HD media support
• Multi-language interface
